Rear Coolant Pipes 4 And 5, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear coolant pipe 3. refer to REAR COOLANT PIPE 3, REMOVING AND INSTALLING .

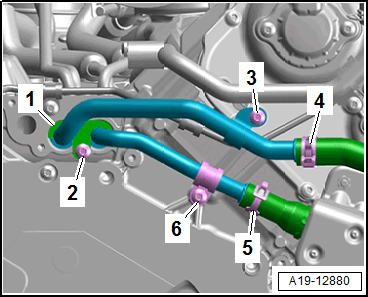

-- Remove the bolt -2- and the retaining plate -1-.
-- Remove the bolt -3- and loosen the hose clamp -4-.
-- Remove the rear coolant pipe 4.
-- Remove the bolt -6- and loosen the hose clamp -5-.
-- Remove the rear coolant pipe 5. (The engine is removed from the image for better clarity.)
