Rear Coolant Pipe 3, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear coolant pipe 6. Refer to REAR COOLANT PIPE 6, REMOVING AND INSTALLING .
Vehicles with Catalytic Converter
-- Remove the right catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
Vehicles with Particulate Filter
-- Remove the right particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .
Continuation for All Vehicles
-- Open the heat shield boot.
-- Disconnect the connector -2-.
-- Remove bolts -arrows-, and set aside the Transmission Coolant Valve -N488-.
-- Free up the wiring harness.

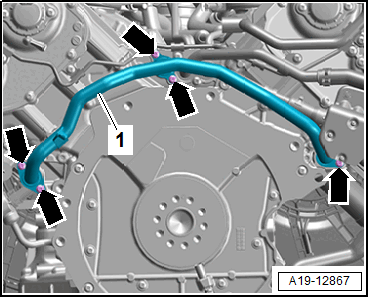

-- Remove the bolts -arrows- and the coolant pipe -1-. (The engine is removed from the image for better clarity.)
