Rear Coolant Pipe 2, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

Vehicles with Catalytic Converter

-- Remove the right catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .

Vehicles with Particulate Filter

-- Remove the right particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

Continuation for All Vehicles

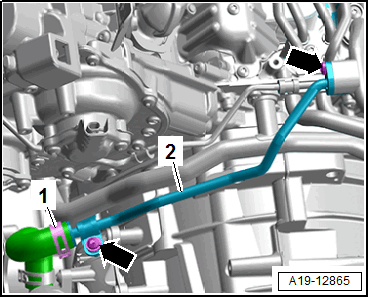

-- Remove the bolts -arrows- and remove the rear coolant pipe 6 -2- from the rear coolant pipe 2.

Courtesy of AUDI OF AMERICA, LLC

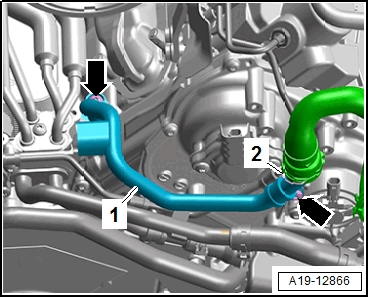

-- Lift the clamp -2- and remove the coolant hose.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the coolant pipe -1-.
