Overview - Third Row Three-Point Seat Belt

WARNING: This page is about a different car, the 2022 Audi SQ7 and 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

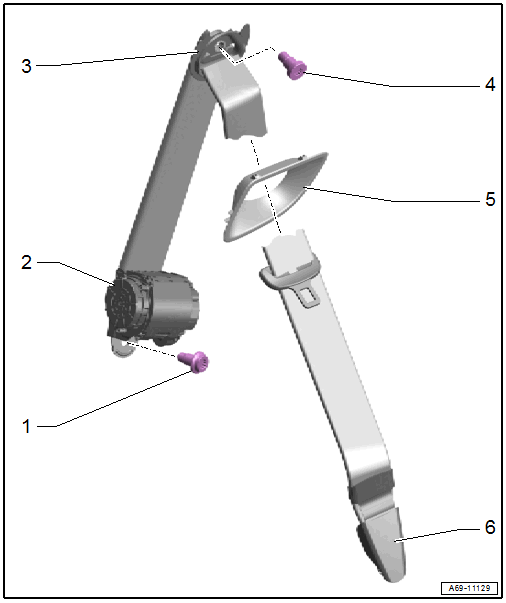

Fig 1: Exploded View Of Third Row Three-Point Seat Belt
GWWA69-11129Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  2. Automatic Belt Retractor
  3. Seat Belt Guide
  4. Bolt
    • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
    • 40 Nm
  5. Seat Belt Guide
  6. Belt End Fitting
