Secondary Air System Resonator, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model preliminary work may be required. Refer to Secondary Air System ; Resonator for Secondary Air System, Removing and Installing.

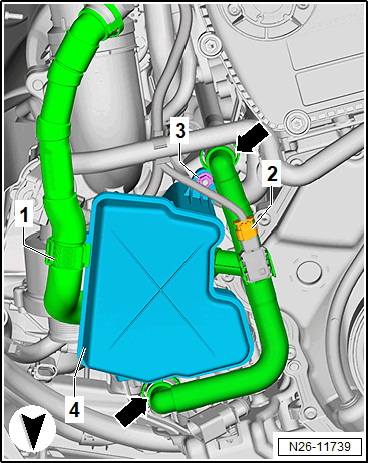

-- Unclip the line -1-.
-- Disconnect the connector -2-.
-- Remove the nut -3-.
-- Press the releases -arrows- together and remove the wire.
-- Remove the resonator -4- from the bracket.
