Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to Secondary Air Injection Pump Motor -V101-, REMOVING AND INSTALLING .

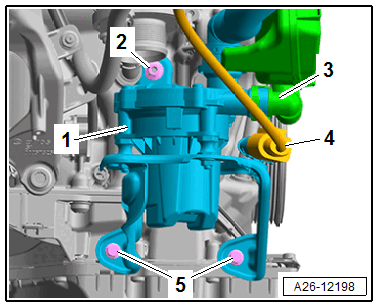

-- Disconnect the connector -4-.
-- Remove the secondary air injection pipe -3- to do so push the release buttons on both sides.
-- Remove the bolts -5- and nut -2- and the Secondary Air Injection Pump Motor -V101- -1-
