Dual Mass Flywheel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
- The transmission is removed. Refer to the appropriate Transmission Information .
CAUTION:
Risk of damaging the dual mass flywheel due to improper handling.
- When loosening or tightening the bolts do not damage the multi-points of the dual mass flywheel.

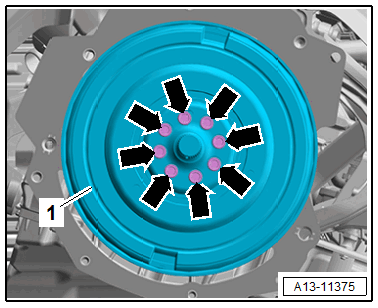

-- Remove the bolts -arrows- and then remove the dual mass flywheel -1-.
-- To do so, use the : T40263 , : T40314 and 24mm socket to counterhold the vibration damper.
