Transmission Coolant Pump, Removing And Installing: Removing
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the rear noise insulation. Refer to OVERVIEW - NOISE INSULATION .

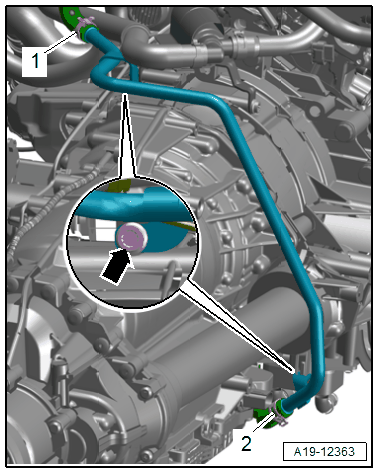

Coolant Pipe, Version 1:
-- Remove the bolt -arrow-.
The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.
-- Loosen the hose clamps -1 and 2-, then clamp off the coolant hoses with the : 3094 and remove them.
-- Remove the coolant pipe.

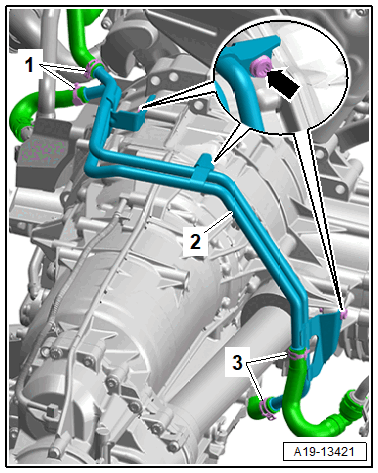

Coolant Pipe, Version 2:
-- Remove the bolts -arrow-.
The cooling system is under pressure when the engine is warm. There is a risk of scalding due to hot steam and hot coolant.
Scalding the skin and other parts of the body is possible.
- Wear safety gloves.
- Wear protective eyewear.
- Reduce the pressure by covering the coolant expansion tank cap with a cloth and carefully opening it.
-- Loosen the hose clamps -1 and 3-, then clamp off the coolant hoses with the : 3094 and remove them.
-- Remove the coolant pipe -2-.
