Engine, Supporting In Installation Position

WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Engine Support Bridge :10-222A

Tools, Preparing

Courtesy of AUDI OF AMERICA, LLC

-- If this is unsuccessful, make a 11 mm diameter hole in both :10-222A/1 as shown.

Dimension -a- = 30 mm

Procedure

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the left and right headlamp cover. Refer to Front Bumper .

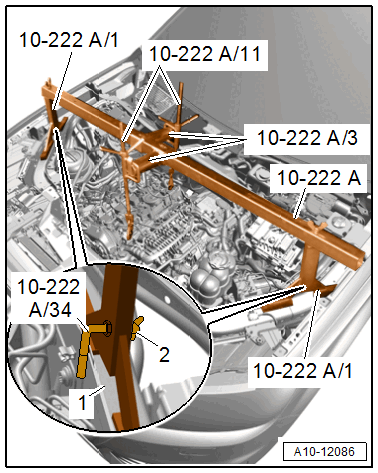

-- Position the :10-222A on the right and left longitudinal member.

-- Tighten the :10-222A/34 on the :10-222A/1 with the nut -2- at the same time the adapter must engage in the longitudinal member -1- as shown.

-- Engage the :10-222A/11 on the engine lifting eye.

-- Pretension the engine with the spindle, do not lift.

Assembling

Assemble in the reverse order of removal. Note the following:

-- Install the headlamp covers. Refer to Front Bumper .

-- Install the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
