Electric Drive Power and Control Electronics -JX1-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the electric drive power and control electronics. Refer to ELECTRIC DRIVE POWER AND CONTROL ELECTRONICS, REMOVING AND INSTALLING .

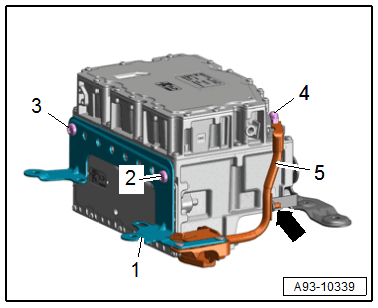

Left Bracket:
-- Pry out the cap -4- and remove the nut.
-- Free up the wire -5- -arrow-.
-- Remove the bolts -2 and 3-.
-- Remove the bracket -1-.

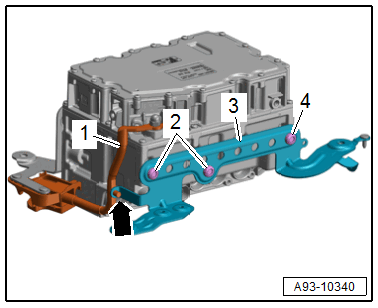

Right Bracket:
-- Free up the wire -1- -arrow-.
-- Remove the bolts -2 and 4-.
-- Remove the bracket -3-.
