Overview - Exhaust Manifold

WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.

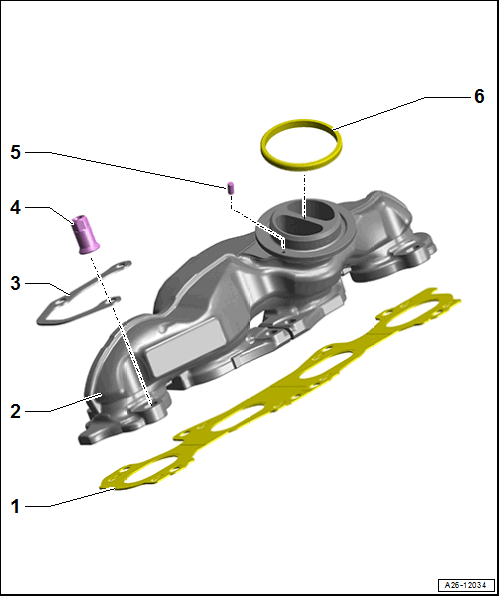

Fig 1: Exploded View Of Exhaust Manifold

Courtesy of AUDI OF AMERICA, LLC

Seal
- Replace after removing
Exhaust Manifold
- Removing and Installing. Refer to EXHAUST MANIFOLD, REMOVING AND INSTALLING .
Retaining Plate
Nut
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
Alignment Pin
Seal
- Replace after removing

Exhaust Manifold - Tightening Specification and Sequence

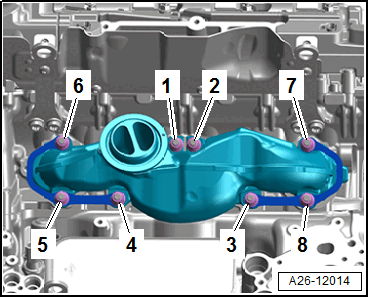

Fig 2: Exhaust Manifold - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Replace the nuts after removing.

-- Tighten the nuts -1 to 8- is stages as shown.

Step	Tightening Specification
1.	Install all the way by hand
2.	20 Nm
3.	27 Nm
