Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the housing for the Map Controlled Engine Cooling Thermostat -F265-. Refer to HOUSING FOR Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING .

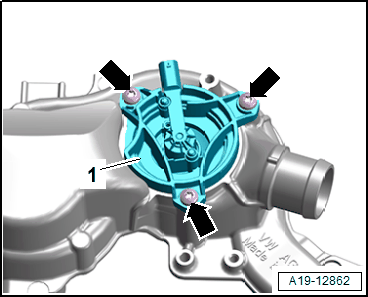

-- Remove the bolts -arrows- and the map controlled engine cooling thermostat -1-.

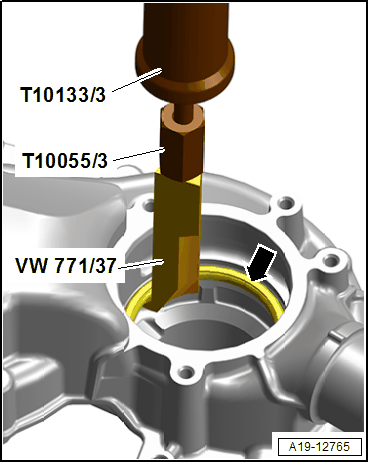

-- Remove the seal -arrow- with the prepared tool.
