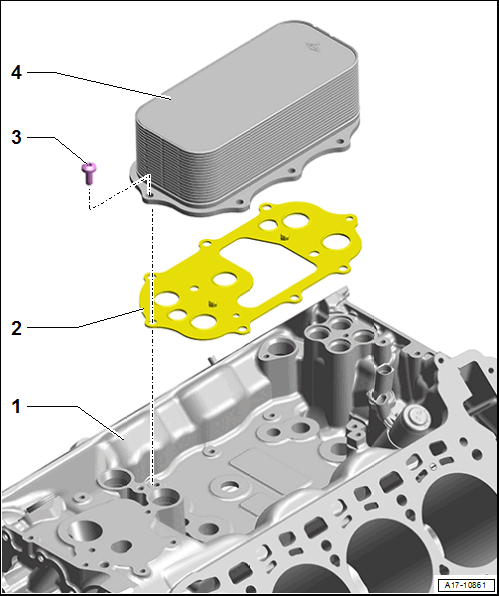

Overview - Engine Oil Cooler
WARNING: This page is about a different car, the 2022 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
- Cylinder Block
- Seal
- Replace after removing
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Engine Oil Cooler
- Removing and Installing. Refer to ENGINE OIL COOLER, REMOVING AND INSTALLING .
Oil Cooler Tightening Specifications and Sequence
-- Tighten the bolts -1 to 8- as shown in steps.
| Step | Tightening Specification |
|---|---|
| 1. | Install all the way by hand |
| 2. | 5 Nm |
| 3. | 9 Nm |
