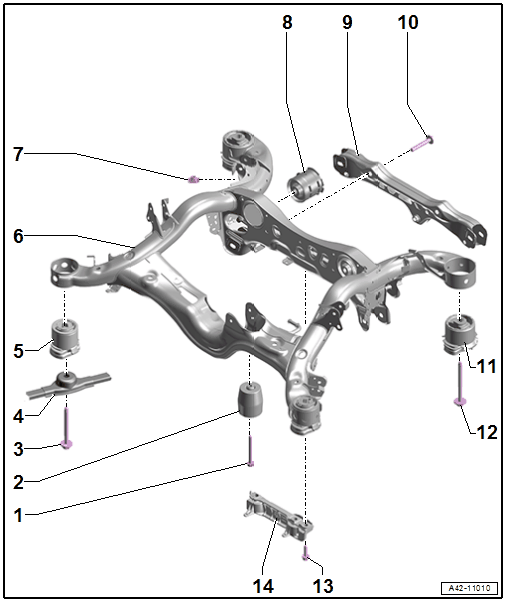

Overview - SUBFRAME
- Bolt
- 50 Nm +180°
- Replace after removing.
- Balance Weight
- Bolt
- 130 Nm + 180°
- Replace after removing.
- Diagonal Brace
- Overview. Refer to OVERVIEW - UNDERBODY CROSSMEMBERS .
- Front Hydraulic Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME FRONT HYDRAULIC BONDED RUBBER BUSHING, REPLACING .
- Installation position. Refer to Fig 2.
- Subframe
- Securing. Refer to SUBFRAME, SECURING .
- Removing and Installing. Refer to SUBFRAME, REMOVING AND INSTALLING .
- Metal Nut
- Rear Bonded Rubber Bushing
- For the rear final drive
- Installation position. Refer to Fig 3.
- Steering Adapter
- Equipped on some models
- Installing. Refer to Fig 4.
- Bolt
- 90 Nm + 180°
- Replace after removing.
- Rear Bonded Rubber Bushing
- For the subframe
- Removing and Installing. Refer to SUBFRAME REAR BONDED RUBBER BUSHING, REPLACING .
- Bolt
- 130 Nm + 180°
- Replace after removing.
- Bolt
- 70 Nm +90°
- Replace after removing.
- Impact Guard
Subframe Hydraulic Front Bonded Rubber Bushing Installation Position
- The groves -arrows- are perpendicular to the direction of travel.
Rear Bonded Rubber Bushings Installation Position for the Rear Final Drive.
- The grooves -arrows- on the bonded rubber bushings -1- are at a right angle.
Steering Adapter, Installing
Equipped on some models
CAUTION:
There is a risk of accident due to threaded connections that are not tightened correctly.
- Tighten threaded connections correctly before driving on public roads.
-- Bring the steering adapter -1- into the installation position and install the bolts by hand all the way.
-- Align the steering adapter with the Locking Pin: T40393 to the subframe and tighten the bolts -item 10- OVERVIEW - SUBFRAME => List Item: Bolt.
