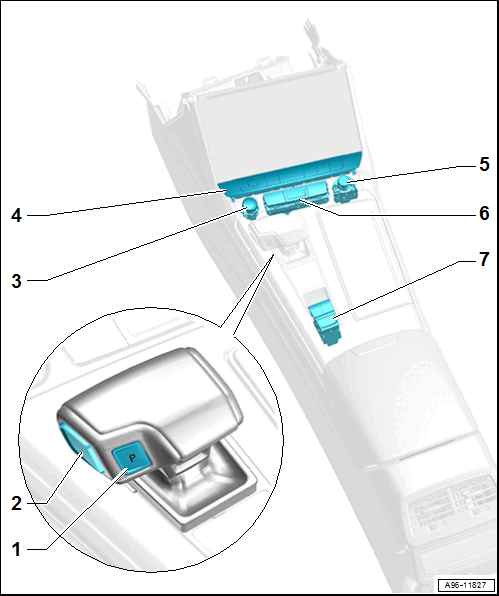

Component Location Overview - Controls In Center Console

Courtesy of AUDI OF AMERICA, LLC

1. Parking Lock Button -E816-
   • Integrated in the selector lever handle
   • Cannot be replaced separately if faulty. Replace the selector lever handle. Refer to the appropriate Service Information .
2. Selector Lever Release Button -E681-
   • Integrated in the selector lever handle
   • Cannot be replaced separately if faulty. Replace the selector lever handle. Refer to the appropriate Service Information .
3. Access/Start Authorization Button -E408-
   • Removing and Installing. Refer to Access/Start Authorization Button -E408-, REMOVING AND INSTALLING .
4. Switch Module in Instrument Panel, Center -EX22-
   • With the following integrated components
     • Emergency Flasher Button -E229-
     • Rear Window Defogger Button -E230-
     • ASR/ESP Button -E256-
     • Windshield Defogger Button -E627-
     • Driving Profile Selection Button -E735- /Driving Profile Selection Button 2 -E797-
     • Auxiliary Coolant Heater Button -E863-
   • The components cannot be replaced separately.
   • If faulty replace a component of the switch module
   • Removing and Installing. Refer to BUTTONS IN CENTER CONSOLE, REMOVING AND INSTALLING, Switch Module in Instrument Panel, Center -EX22- .
5. Driver Volume Control -E67-
   • Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
6. Center Console Switch Module 1 -EX23-
   • With the following integrated components
     • Parking Aid Button -E266-
     • Parallel Parking Assistance Button -E581-
   • The components cannot be replaced separately.
   • If faulty replace a component of the switch module
   • Removing and Installing. Refer to BUTTONS IN CENTER CONSOLE, REMOVING AND INSTALLING, Center Console Switch Module 1 -EX23- .
7. Parking Brake Button -EX12- /-Auto Hold- Button -E540-
   • Removing and Installing. Refer to Parking Brake Button -EX12- /-Auto Hold- Button -E540-, REMOVING AND INSTALLING .

Switch Module in Instrument Panel, Center EX22 - Tightening Specification

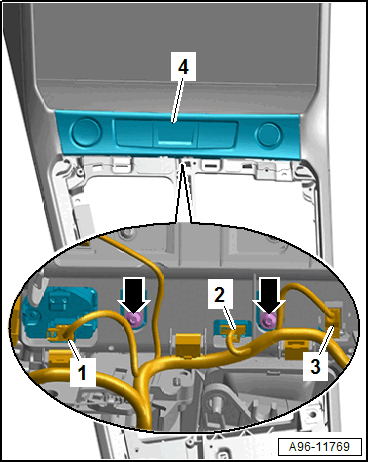

Fig 1: Switch Module in Instrument Panel, Center -EX22-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -arrows- to 1.5 Nm.

Center Console Switch Module 1 EX23 - Tightening Specification

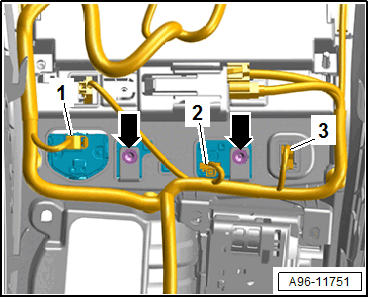

Fig 2: Center Console Switch Module 1 -EX23-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -arrows- to 1.5 Nm.
