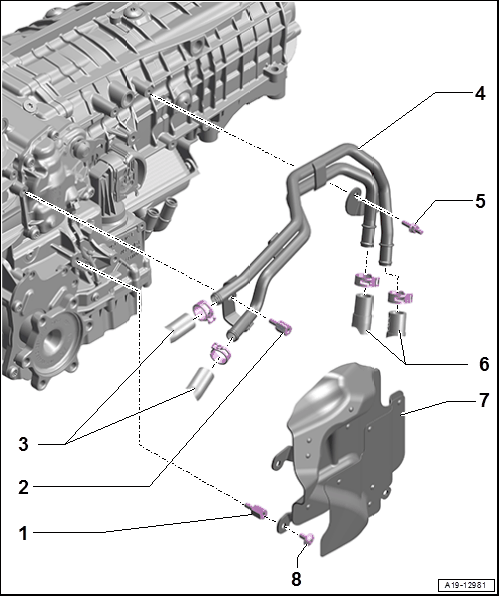

Overview - Transmission Coolant Pipes
WARNING: This page is about a different car, the 2021 Audi A6 Quattro, 2020 Audi A6 Quattro, and 2019 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Equipped on some models
- Bolt
- 9 Nm
- Coolant Hoses
- Transmission Coolant Pipes
- Removing and installing. Refer to TRANSMISSION COOLANT PIPES, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Coolant Hoses
- Heat Shield
- Equipped on some models
- Bolt
- 9 Nm
- Equipped on some models
