Rear Brake Pads: Removing

-- Remove wheels.

-- Mark positions of brake pads that are to be used again.

Install again in same place to ensure uniform braking.

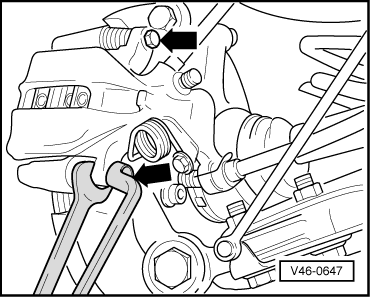

-- Remove brake caliper housing.

GWWV46-0647Courtesy of AUDI OF AMERICA, LLC
WARNING:
  • Do not loosen brake hose or lines.
  • Secure the brake caliper with a piece of wire in order to relieve the stress on the brake hose.

-- Remove brake pads.

CAUTION:

Brake fluid is poisonous and must never be extracted by mouth through a hose.

WARNING:
  • Extract part of the brake fluid from the brake fluid reservoir before pushing back the pistons.
  • Use the bleeder bottle or a plastic bottle, which is used only for brake fluid, for extracting the fluid.
