Airbag Power Supply Connector
CAUTION:
- Airbag power supply connector and battery ground strap must always be disconnected before working on the airbag or related systems.
- Connector remains connected when using scan tool: VAG1551 .

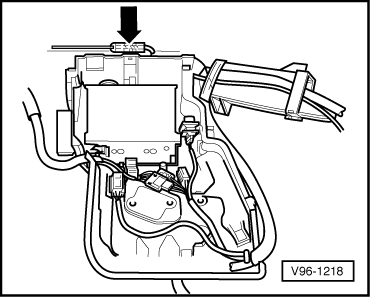

Single-pin connector (red) with foam sleeve -arrow-, located above electronics box in front passenger-side footwell.
Removing and Installing Airbag Triggering Unit
Removing
CAUTION:
Airbag power supply connector and battery ground strap must always be disconnected before working on the airbag or related systems.
Always obtain radio security code before disconnecting battery ground (GND) strap.
-- Disconnect battery ground.
-- Remove center console. Refer to REAR CENTER CONSOLE ASSEMBLY OVERVIEW .

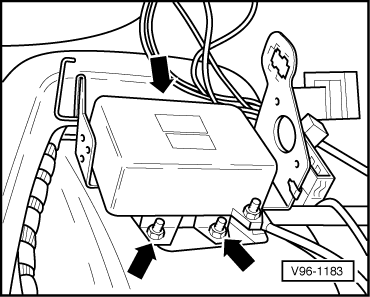

-- Remove nuts -arrows-.
Tightening torque: 6.0 Nm
-- Disconnect 10 pin multi-pin connector at electronic box.
-- Remove triggering unit.
Installing
Install all components in reverse order of removal.
