Latch System, Wagon
Rear Upper Tethers, 100 Wagon, A6 Wagon
Up to three top tether points are possible.
NOTE:
The rear top tether points can be found under the rear cargo floor at left, right, and center on the sloped section of the crossmember.

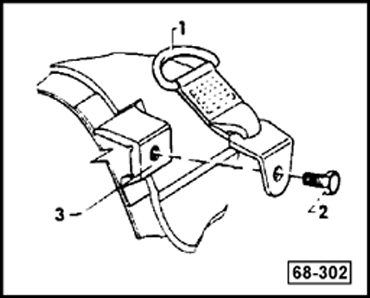

Rear Top Tether for 100 Wagon, A6 Wagon models
- Tether
- Hex head bolt
- 25 ± 3 Nm (18 ± 2 ft lb)
3 - Nut
- Fits into hex-shaped hole in body
Rear Lower Anchors, 100 Wagon, A6 Wagon
NOTE:
Rear lower anchors are not applicable.
