Automatic Seat Belt TENSIONING, 100: Removing

-- Remove sill panel trim, lower A-panel trim. Refer to A-PILLAR TRIM .

-- Pull back carpet and sound insulation.

-- Separate cable from tube.

-- On driver's side cut tie wrap from cable and remove foot rest support.

Vehicles with Manual Transmission 012, 01A

-- Remove bolt -4- and take off cable bracket -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Cut tie wraps -1-.

-- Take off adhesive tape -2- from bracket.

Vehicles with Automatic Transmission 097

-- Cut tie wraps -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Open clamps -2- on cable guide bracket.

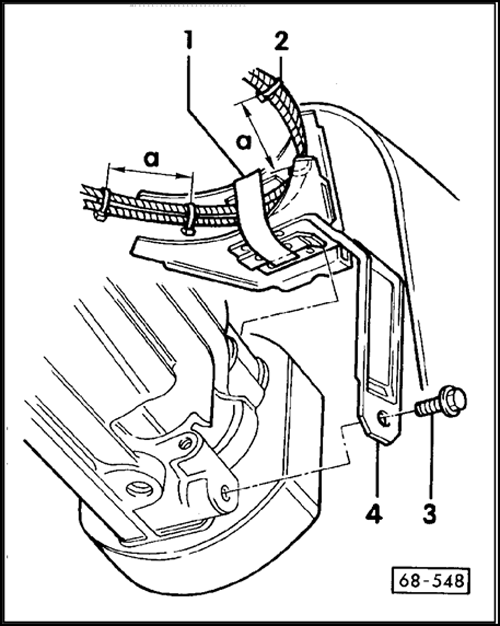

Vehicles with Automatic Transmission 01D

-- Remove bolt -3-, bracket -4-.

Courtesy of AUDI OF AMERICA, LLC

-- Cut tie wraps -2-.

-- Take off adhesive tape from bracket.
