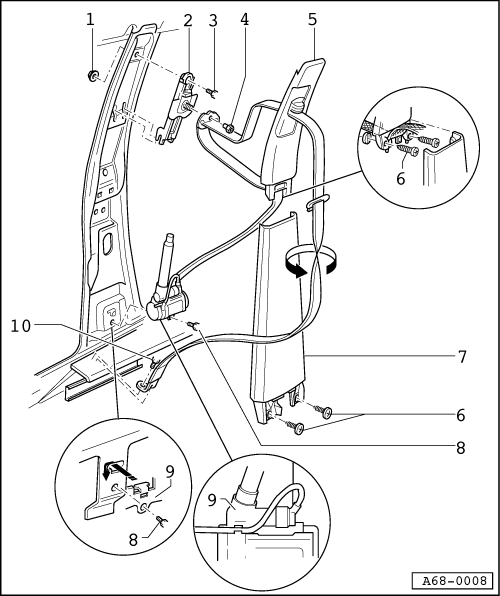

Three-Point Seat Belt, B-Pillar Assembly Overview, From My 1995: Notes
- Nut
- To remove, remove B-pillar trim. Refer to B-PILLAR TRIM . Pull out grommet.
- Tightening torque: 23 Nm (17 ft lb)
- Height Adjustment
- After installation of trim, check for proper functioning.
- Height adjustment must audibly click into all 5 positions.
- Button has to retract to upper position after activating adjustment.
- Bolt
- Shouldered Nut
- Tightening torque: 50 Nm (37 ft lb)
- Upper Cover for B-Pillar
- Installing, refer to Fig. 1 Installing Upper Cover for B-Pillar .
- Bolt
- Tightening torque: 2 Nm (18 in. lb)
- Lower Cover for B-Pillar
- To remove, remove bolts THREE-POINT SEAT BELT, B-PILLAR ASSEMBLY OVERVIEW, FROM MY 1995 => List Item: Bolt.
- Tightening torque: 2 Nm (18 in. lb)
- Bolt
- Tightening torque: 50 Nm (37 ft lb)
- Retractor
- Insert retaining tab and tighten with bolt.
- Bolt
- Tightening torque: 50 Nm (37 ft lb)
