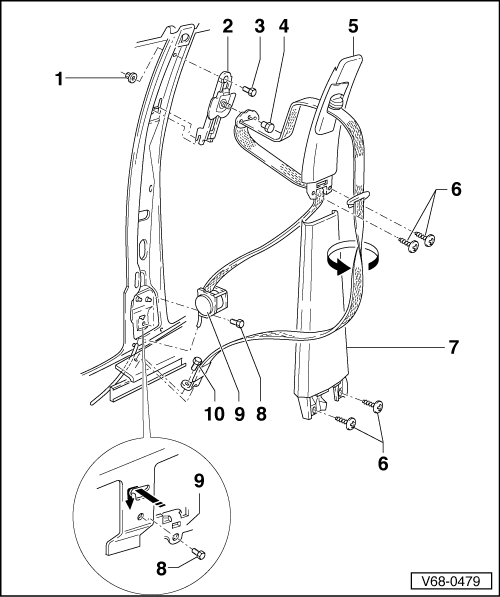

Three-Point Seat Belt, B-Pillar Assembly Overview, 1992-1994: Notes

Courtesy of AUDI OF AMERICA, LLC

1. Nut
   • To remove, remove B-pillar trim. Refer to B-PILLAR TRIM . Pull out grommet
   • Tightening torque: 23 Nm (17 ft lb)
2. Height Adjustment
   • Functional check after fitting trim:
   • Height adjuster must audibly lock into place in all 5 positions.
   • Button must return to upper position after every operation.
3. Bolt
4. Shoulder Nut
   • Relay mechanism must automatically level out in vertical position in wearing direction after tightening nut.
   • Tightening torque: 50 Nm (37 ft lb).
5. Upper B-Pillar Trim
   • Installing, refer to Fig. 1 Installing Upper B-Pillar Trim .
6. Combi Bolts
   • 2.0 Nm (18 in lb)
7. Lower B-Pillar Trim
   • To remove, unscrew combi bolts  THREE-POINT SEAT BELT, B-PILLAR ASSEMBLY OVERVIEW, 1992-1994 => List Item: Combi Bolts.
   • 2.0 Nm (18 in lb)
8. Bolt
   • 50 Nm (37 ft lb)
9. Seat Belt Retractor - B-Pillar
   • Engage retaining lug and bolt on retractor.
10. Bolt
    • Watch twisting of belt.
    • Tightening torque: 50 Nm (37 ft lb)
