Overview - Rear Seat Backrest

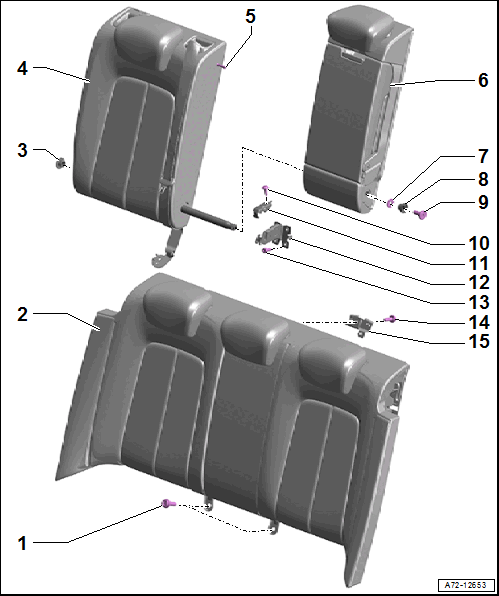

Fig 1: Overview - Rear Seat Backrest

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 33 Nm
- Quantity: 2
Fixed Backrest
- Sedan only
- Equipped on some models
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING, FIXED BACKREST .
Outer Bearing Sleeve
- Folding backrest only
- Removing and installing. Refer to OUTER BEARING SLEEVE, REMOVING AND INSTALLING .
- Place in the backrest frame and push until stop.
Folding Backrest
- Right with pass-through
- Removing and installing. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .
Locking Bolt
- 8 Nm
- For backrest with pass-through
Backrest with Pass-Through
- Removing and installing. Refer to BACKREST WITH PASS-THROUGH, REMOVING AND INSTALLING .
Washer
- Right folding backrest only
Inner Bearing Sleeve
Mounting Pin
- 15 Nm
- Removing and installing. Refer to INNER MOUNTING PIN, REMOVING AND INSTALLING .
Bolt
- 8 Nm
Securing Bracket
- For the center bracket
- Folding backrest only
- Removing and installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Center Bracket
- Folding backrest only
- Removing and installing. Refer to CENTER BRACKET, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 4
Bolt
- 30 Nm
- Quantity: 3
Retaining Bracket
- For fixed backrest
- Riveted to the body.
- Quantity: 3
