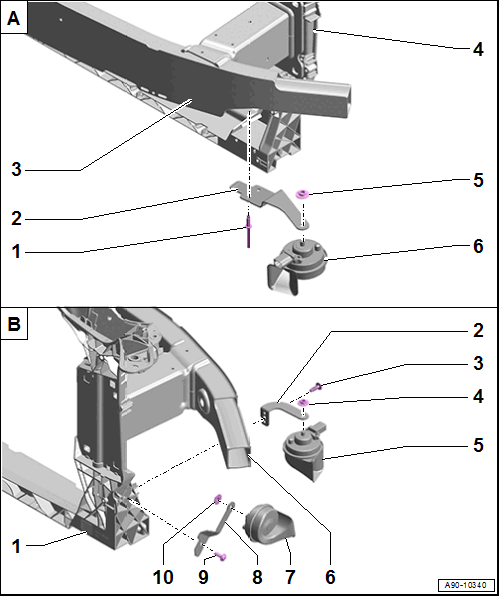

Overview - Horn
- A -
Left Side of Vehicle
- 1 -
Pop Rivet
- Quantity: 2
- 2 -
Bracket
- For the horn
- 3 -
Impact member
- 4 -
Lock Carrier
- 5 -
Nut
- 11 Nm
- 6 -
Low Tone Horn -H7-
- Removing and Installing. Refer to Low Tone Horn -H7-, REMOVING AND INSTALLING, LEFT .
- B -
Right Side of Vehicle
- 1 -
Lock Carrier
- 2 -
Bracket
- For the horn
- Depending on the model
- 3 -
Bolt/Rivet
- Depending on the model
- Bolt: 15 Nm
- Rivet: quantity: 2
- Depending on the model
- 4 -
Nut
- 11 Nm
- 5 -
Low Tone Horn -H7-
- Removing and Installing. Refer to High Tone Horn -H2- /Low Tone Horn -H7-, REMOVING AND INSTALLING, RIGHT .
- 6 -
Impact member
- 7 -
High Tone Horn -H2-
- Removing and Installing. Refer to Low Tone Horn -H7-, REMOVING AND INSTALLING, LEFT .
- 8 -
Bracket
- For the horn
- 9 -
Screw
- 15 Nm
- 10 -
Nut
- 11 Nm
