Hydraulic Pump Motor, Removing And Installing: Installing

WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal and note the following:

-- Slide a new seal -2- onto the motor.

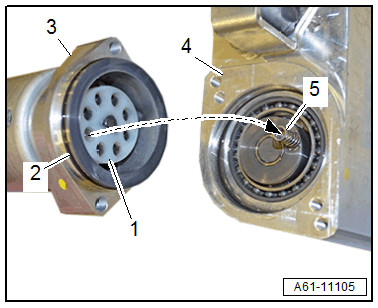

Fig 1: Installing Motor On Valve Block Using Slight Tilting Movements

Courtesy of AUDI OF AMERICA, LLC

-- Place the motor -3- on the valve block -4-.

The shaft -5- must engage in the recess in the driver -1-.

-- Install the motor on the valve block using slight tilting movements.

-- Check the fluid level and fill with hydraulic fluid if necessary. Refer to HYDRAULIC SYSTEM, FILLING AND BLEEDING .
