Hydraulic Line On Valve Block, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hydraulic pump and move it to the side with the hydraulic lines still connected. Refer to HYDRAULIC PUMP, REMOVING AND INSTALLING .
- Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Open and close the fluid filler plug -arrow- one time to reduce the pressure.

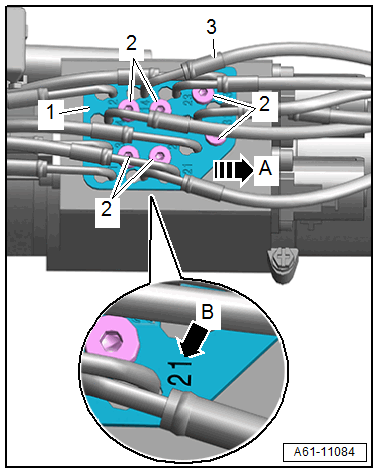

-- Remove the bolts -2- and push the base plate -1- to the side -arrow A-.
-- Remove the hydraulic lines -3- from the valve block.
If a hydraulic line is being replaced:
- Remove the hydraulic line from the hydraulic cylinder. Refer to HYDRAULIC LINE ON CYLINDER, REMOVING AND INSTALLING .
