Convertible Top Stowed Position Switch -F171- /Convertible Top Front Closed Position Switch -F202-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the hydraulic cylinder for the convertible top drive. Refer to CONVERTIBLE TOP DRIVE HYDRAULIC CYLINDER, REMOVING AND INSTALLING .

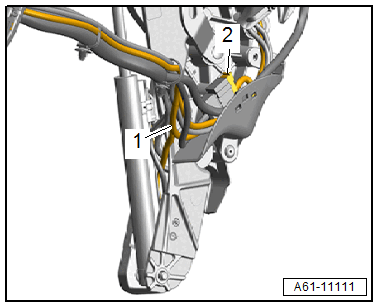

-- Disconnect the connector -2-.
-- Free up the wiring harness -1- and free up the contact connector with the unlocking tool from the :VAS1978B on the connector housing.
-- Turn the hydraulic line -5- to the side.
-- Release the catches -1 and 7- and remove the cover -2 and 6-.
-- Mark the installation position of the switch -4- for reinstallation.
-- Remove the switch -4- from the hydraulic cylinder -3-.
