Convertible Top Control Module -J256-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Relay and Fuse Panel 2 -SR2-. Refer to VEHICLE ELECTRICAL SYSTEM, GENERAL REPAIR INFORMATION .
-- Release the retainer -1-.
-- Remove the bracket -2- for the control modules upward in direction of -arrow- and move to the side.

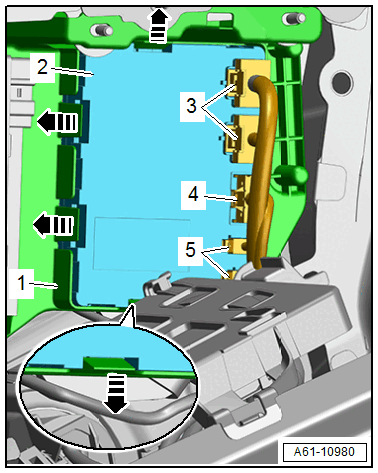

-- Release the catches in direction of -arrows- and remove the Convertible Top Control Module -J256- -2- slightly.
-- Disconnect the connectors -3, 4 and 5-.
-- Remove the Convertible Top Control Module -J256- from the mount -1-.
