Overview - Convertible Top Latch

WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

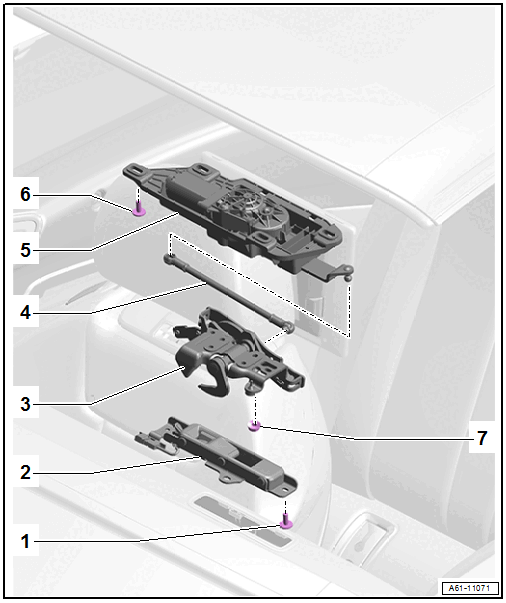

Fig 1: Convertible Top Latch

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 3
End Panel
- With the Convertible Top Latch -Closed- Left Switch -E891-, Convertible Top Latch -Closed- Right Switch -E892-, Convertible Top Locking Readiness Left Switch -E893-, Convertible Top Locking Readiness Right Switch -E894-
- Removing and Installing. Refer to CONVERTIBLE TOP END PANEL, REMOVING AND INSTALLING .
Convertible Top Latch
- With Convertible Top Latch -Open- Switch -F294-, Convertible Top Latch -Closed- Switch -F295-
- Removing and Installing. Refer to CONVERTIBLE TOP LATCH, REMOVING AND INSTALLING .
Actuator Rod
- For the convertible top latch
Mount
- With the Convertible Top Locking Motor -V223-
- Removing and Installing. Refer to MOUNT WITH Convertible Top Locking Motor -V223-, REMOVING AND INSTALLING .
Bolt
- 8 Nm
- Quantity: 4
Nut
- 10 Nm
- Quantity: 4

End panel - tightening specification and sequence

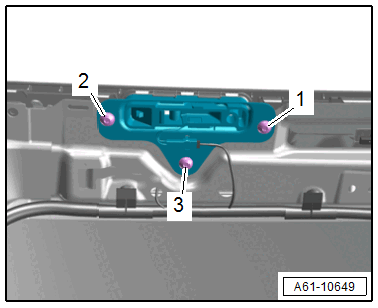

Fig 2: Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts in sequence -1, 2 and 3- to 15 Nm.
