Mount With Convertible Top Locking Motor -V223-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front trim panel. Refer to FRONT TRIM PANEL, REMOVING AND INSTALLING .

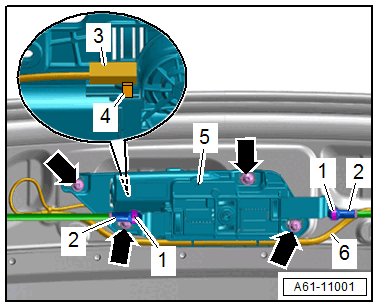

-- Using a small screwdriver, lift the locking spring -1- slightly and remove the ball socket -2- from the ball pin.
-- Free up the wiring harness -6-.
-- Remove the screws -arrows-.
-- Remove the mount -5- with the Convertible Top Locking Motor -V223-.
-- Carefully push the retainer -4- on both sides to disconnect the connector -3-.
