Convertible Top Retaining Plate, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the convertible top. Refer to CONVERTIBLE TOP, REMOVING AND INSTALLING .
- Rear side window in the "open" position.
-- Remove the side window mount. Refer to SIDE WINDOW MOUNT, REMOVING AND INSTALLING .

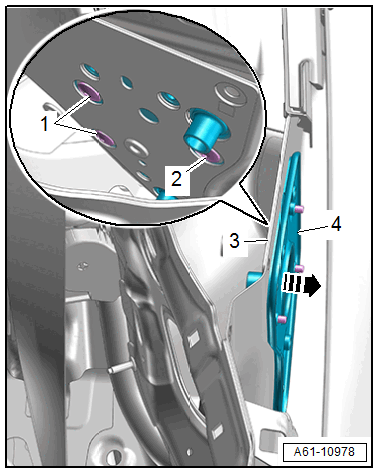

-- Remove the bolts -1 and 2-.
-- Remove the retaining plate -4- from the body -3- in direction of -arrow-.
-- Remove the retaining plate upward.
