Convertible Top Latch, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the mount with the convertible top locking motor. Refer to MOUNT WITH Convertible Top Locking Motor -V223-, REMOVING AND INSTALLING .

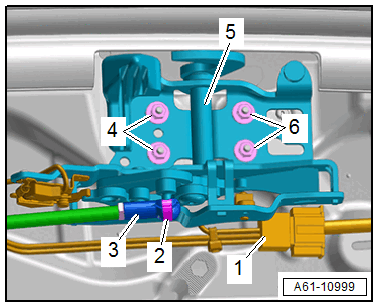

-- Mark the installation position of the convertible top latch -5- for reinstallation.
-- Disconnect the connector -1- and free up the wiring harness.
-- Using a small screwdriver, lift the locking spring -2- slightly and remove the ball socket -3- from the ball pin.
-- Remove the nuts -4 and 6- and the convertible top latch -5-.
