Convertible Top End Panel, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the windshield frame trim panel. Refer to COMPONENT LOCATION OVERVIEW - VEHICLE INTERIOR TRIM PANELS .

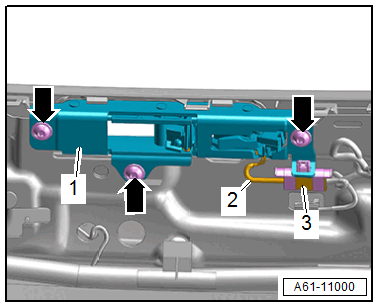

-- Mark the end panel installation position -1- for reinstallation.
-- Disconnect the connector -3- and free up the wiring harness -2-.
-- Remove the bolts -arrows- and the end panel -1-.
