Shock Absorber, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:

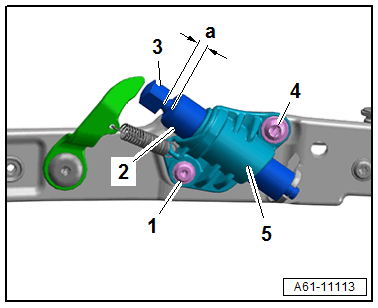

-- Insert the shock absorber and install the bolts -1 and 4- loosely.
- The bracket with the shock absorber must still be able to be moved.
-- Measure the dimension -a- between the stop -3- and the shock absorber -2- and if necessary push the bracket -5- in the oblong hole.
- Dimension -a- = 0.5 ± 1.5 mm
-- Tighten the bolts.
