Rear Interior Lamp Mount, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi S4, 2022 Audi A4 Quattro, 2021 Audi S4, and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
-- Clean the adhesive surface on the mount with Cleaning Solution : D 009 401 04 and let it dry.

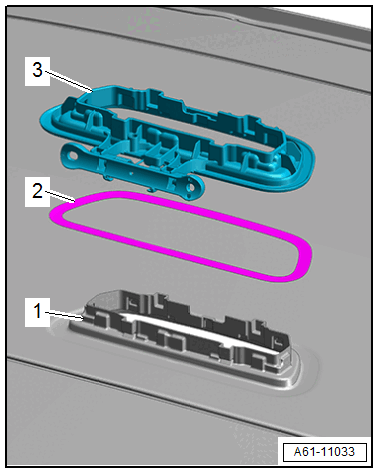

-- Remove the protective film from the molded part -2- position on the mount and press on. At the same time pay attention that there is a smooth bonding of the convertible top headliner.
-- Install the mount on the "Bow 3".
-- Remove the protective film from the molded part, position the convertible top headliner -1- on the mount -3- and press on.
New convertible top headliner:
-- Make a cut-out for the interior lamp in the area of the mount in the convertible top headliner.
