Power Rear Lid Opening Sensors -G750- / -G760-, Removing And Installing, Version 1: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the nuts/bolt -arrows- on the lower section of the bumper cover.

GWWA63-11181Courtesy of AUDI OF AMERICA, LLC

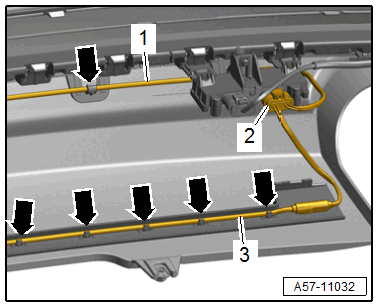

-- Disconnect the connector -2-.

GWWA57-11032Courtesy of AUDI OF AMERICA, LLC

-- Free up the sensor -1 and 2- at the brackets -arrows-.

-- Remove the sensor.
