Overview - Lane Change Assistance
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

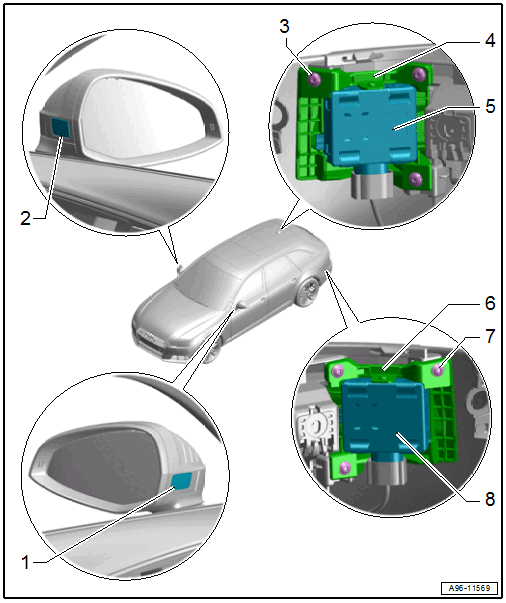

- Lane Change Assistance Warning Lamp in Driver Exterior Rearview Mirror -K233-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Lane Change Assistance Warning Lamp in Front Passenger Exterior Rearview Mirror -K234-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE WARNING LAMP IN DRIVER AND FRONT PASSENGER EXTERIOR REARVIEW MIRROR -K233- / -K234-, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 3
- Bracket
- For lane change assistance control module
- Lane Change Assistance Control Module -J769-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
- Bracket
- For lane change assistance control module
- Bolt
- 2 Nm
- Quantity: 3
- Lane Change Assistance Control Module 2 -J770-
- Removing and installing. Refer to LANE CHANGE ASSISTANCE CONTROL MODULES -J769- / -J770-, REMOVING AND INSTALLING .
- Calibrating. Refer to LANE CHANGE ASSISTANCE, CALIBRATING .
