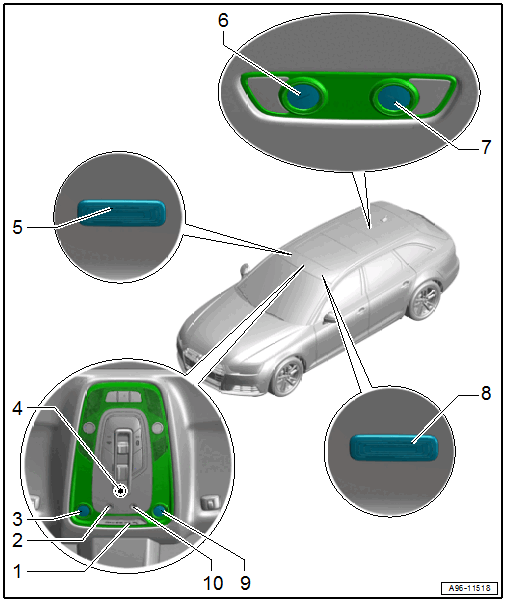

Component Location Overview - Roof Trim Panel Lamps
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- The Front Roof Module -WX3- must be replaced if an indicator lamp is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Ambient Lighting
- The Front Roof Module -WX3- must be replaced if a LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Driver Reading Lamp -W19-
- The Front Roof Module -WX3- must be replaced if a LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Front Roof Module -WX3-
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Overview. Refer to OVERVIEW - Front Roof Module -WX3- .
- Front Passenger Vanity Mirror Lamp -W14-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Left Rear Reading Lamp -W11-
- The Rear Interior Lamp -WX2- must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Right Rear Reading Lamp -W12-
- The Rear Interior Lamp -WX2- must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Driver Vanity Mirror Lamp -W20-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
- Front Passenger Reading Lamp -W13-
- The Front Roof Module -WX3- must be replaced if a LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
- Ambient Lighting
- The Front Roof Module -WX3- must be replaced if a LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
