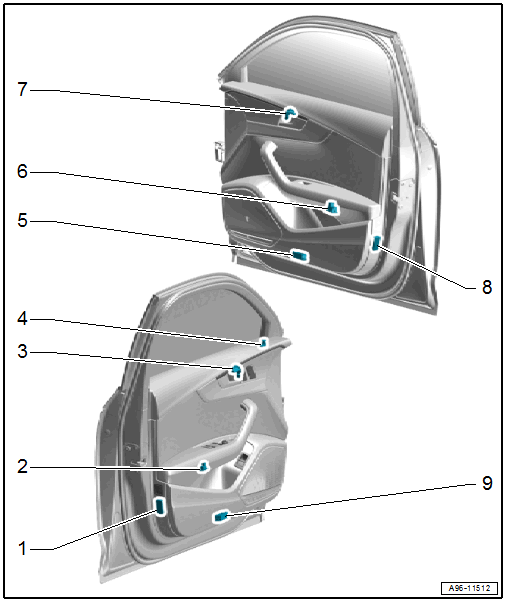

Component Location Overview - Front Door Lamps
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Door Warning Reflector
- Driver Door Storage Compartment Illumination Bulb -L160-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161-, REMOVING AND INSTALLING .
- Driver Side Interior Door Handle Illumination Lamp -L219-
- Removing and Installing. Refer to DRIVER SIDE/PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP -L219- / -L220-, REMOVING AND INSTALLING .
- Central Locking -Safe- Indicator Lamp -K133-
- Removing and Installing. Refer to Central Locking -Safe- Indicator Lamp -K133-, REMOVING AND INSTALLING .
- Passenger Side Entry Lamp -W93-
- Removing and Installing. Refer to DRIVER AND PASSENGER SIDE ENTRY LAMP -W92- / -W93-, REMOVING AND INSTALLING .
- Front Passenger Door Storage Compartment Illumination Bulb -L161-
- Removing and Installing. Refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161-, REMOVING AND INSTALLING .
- Passenger Side Interior Door Handle Illumination Lamp -L220-
- Removing and Installing. Refer to DRIVER SIDE/PASSENGER SIDE INTERIOR DOOR HANDLE ILLUMINATION LAMP -L219- / -L220-, REMOVING AND INSTALLING .
- Front Passenger Side Door Warning Reflector
- Driver Side Entry Lamp -W92-
- Removing and Installing. Refer to DRIVER AND PASSENGER SIDE ENTRY LAMP -W92- / -W93-, REMOVING AND INSTALLING .
