Power Window Control Head in Driver Door -E512-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .
-- If equipped, loosen the door storage compartment illumination bulb from the mount and let it hang with the connector attached. Refer to DRIVER AND FRONT PASSENGER DOOR STORAGE COMPARTMENT ILLUMINATION BULB -L160- / -L161-, REMOVING AND INSTALLING .

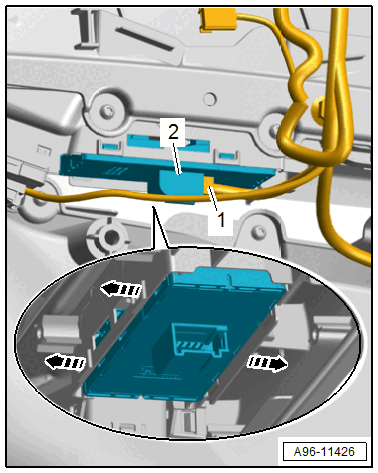

-- Release the retainers by lifting the tabs in direction of -arrows-.
-- Remove the power window switch -2- from the mount.
-- Disconnect the connector -1-.
