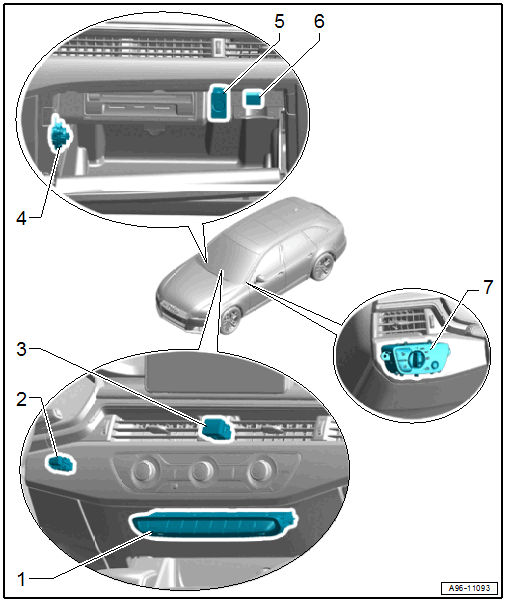

Component Location Overview - Instrument Panel Controls
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Switch Module in Instrument Panel, Center -EX22-
- With the following integrated components:
- ASR/ESP Button -E256-
- Parking Aid Button -E266-
- Front Display Open/Close Button -E462-
- Parallel Parking Assistance Button -E581-
- Driving Profile Selection Button with Driving Profile Selection Button -E735- /Driving Profile Selection Button 2 -E797-
- Start/Stop Mode Button -E693-
- The components cannot be replaced separately if faulty.
- Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING .
- With the following integrated components:
- Instrument Cluster Operation Button -E493-
- Removing and Installing. Refer to BUTTONS IN INSTRUMENT PANEL, REMOVING AND INSTALLING, Instrument Cluster Operation Button -E493- .
- Emergency Flasher Button -E229-
- Removing and Installing. Refer to Emergency Flasher Button -E229-, REMOVING AND INSTALLING .
- Glove Compartment Lamp Switch -E26-
- Removing and Installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
- Front Passenger Airbag Deactivation Key Switch -E224-
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Valet Parking Lock Button -E536-
- Removing and Installing. Refer to Valet Parking Lock Button -E536-, REMOVING AND INSTALLING .
- Light Switch -E1-
- With instrument panel and switch illumination dimmer switch, rear fog lamp button
- Removing and Installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
Light SwitchE1 Tightening Specification
-- Tighten the screws -arrows- to 1.5 Nm.
