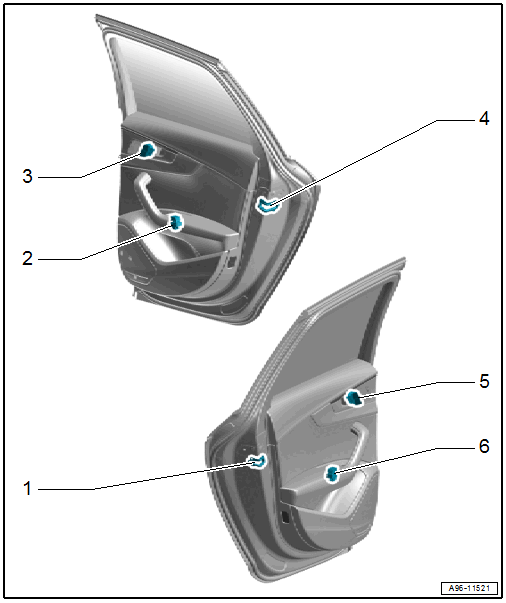

Component Location Overview - Controls In Rear Doors
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driver Side Rear Door Contact Switch -F505-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Passenger Side Rear Power Window Button -E713-
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
- Passenger Side Rear Interior Locking Button -E718-
- Removing and Installing. Refer to LEFT AND RIGHT REAR INTERIOR LOCKING SWITCH -E273- / -E274-, REMOVING AND INSTALLING .
- Passenger Side Rear Door Contact Switch -F506-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Side Rear Interior Locking Button -E717-
- Removing and Installing. Refer to LEFT AND RIGHT REAR INTERIOR LOCKING SWITCH -E273- / -E274-, REMOVING AND INSTALLING .
- Driver Side Rear Power Window Button -E711-
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
