Tail Lamp, Removing And Installing, Sedan: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn the light switch to position "0".

Before Product Improvement:

Courtesy of AUDI OF AMERICA, LLC

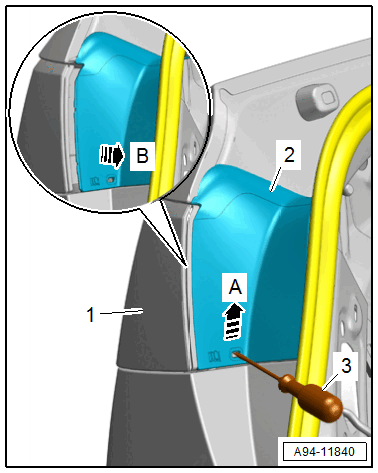

-- Insert a screwdriver -3- into the opening and slide the cover -2- approximately 8 mm upward in the direction of -arrow A-.

-- Remove the cover as shown from the tail lamp -1- in direction of -arrow B-.

From Product Improvement:

Courtesy of AUDI OF AMERICA, LLC

-- To release the catches on the cover -2-, push the cover by hand on the edge forward -arrows-.

-- Remove the cover from the tail lamp -1-.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

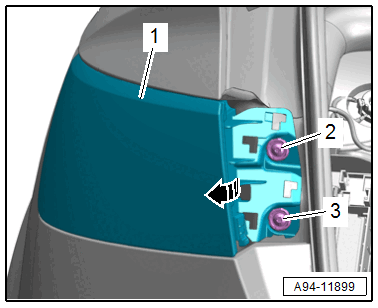

-- Remove the bolts -2 and 3-.

-- Remove the tail lamp -1- from the clip nut in the direction of -arrow-.

-- Disconnect the connector.
