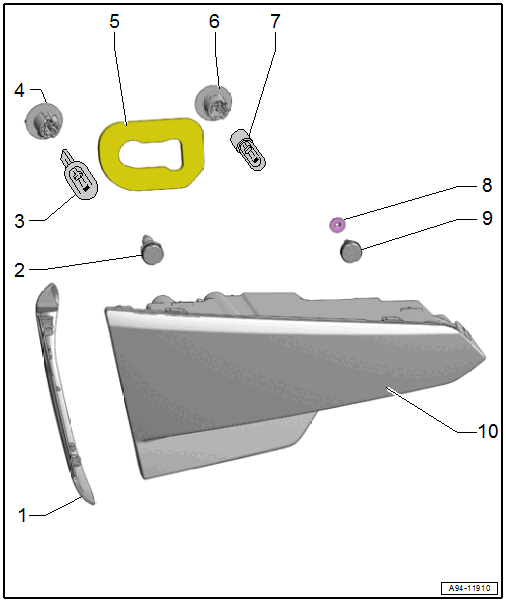

Overview - Rear Lid Tail Lamps, Sedan: Notes
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING, SEDAN .
- Adjusting Screw
- To align the tail lamps to the body contours. Refer to REAR LID TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Tail Lamp Bulb 2
- Left Tail Lamp Bulb 2 -M49-
- Right Tail Lamp Bulb 2 -M50-
- Bulb, replacing. Refer to REAR LID TAIL LAMP BULB, REMOVING AND INSTALLING, SEDAN .
- Bulb Socket
- Removing and installing. Refer to REAR LID TAIL LAMP BULB, REMOVING AND INSTALLING, SEDAN .
- Seal
- Replace if damaged
- Bulb Socket
- Removing and installing. Refer to REAR LID TAIL LAMP BULB, REMOVING AND INSTALLING, SEDAN .
- Rear Fog Lamp Bulb
- Left Rear Fog Lamp Bulb -L46-
- Right Rear Fog Lamp Bulb -L47-
- Bulb, replacing. Refer to REAR LID TAIL LAMP BULB, REMOVING AND INSTALLING, SEDAN .
- Nut
- Tightening specifications. Refer to Figure.
- Quantity: 3
- Adjusting Screw
- To align the tail lamps to the body contours. Refer to REAR LID TAIL LAMP, ALIGNING WITH BODY CONTOUR .
- Tail Lamp
- Left Tail Lamp 2 -MX5-
- Right Tail Lamp 2 -MX6-
- LED version: If an LED is malfunctioning, the tail lamp must be completely replaced
- Removing and installing. Refer to TAIL LAMP, REMOVING AND INSTALLING, SEDAN .
- Adjusting. Refer to TAIL LAMP, CORRECTING INSTALLED POSITION .
