Tail Lamp Bulb Holder, Removing And Installing, Sedan: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the tail lamp. Refer to TAIL LAMP, REMOVING AND INSTALLING, SEDAN .

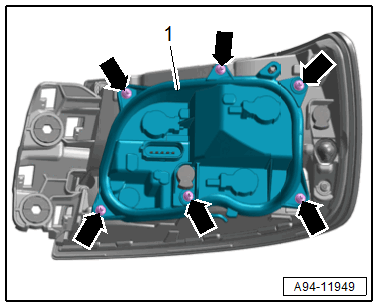

-- Remove the bolts -arrows-.

GWWA94-11949Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb holder -1- from the tail lamp.

-- Remove the bulb from the bulb socket.
