Left/Right Hid Headlamp Bulb -L13- / -L14-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

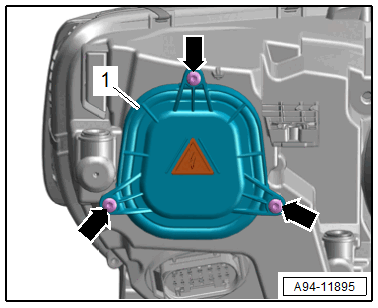

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the housing cover -1-.

CAUTION:

Extremely dangerous due to high-voltage.

When the headlamps are switched on, the HID headlamp components marked with the yellow high-voltage symbol are under high voltage. Electric shock may occur if components are contacted.

- Never touch the components marked with the yellow high-voltage symbols when the lighting is switched on.

- When performing procedures, switch off the ignition and all electrical equipment, and place the ignition key outside of the vehicle.

- Do not operate the flashers.

-- Turn the HID headlamp bulb -3- counter-clockwise in the direction of -arrow- and remove it from the housing.

Courtesy of AUDI OF AMERICA, LLC

-- Press the release button -1- to disconnect the connector -2-.
