Sealing Frame, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the headlamp housing. Refer to HEADLAMP, REMOVING AND INSTALLING .

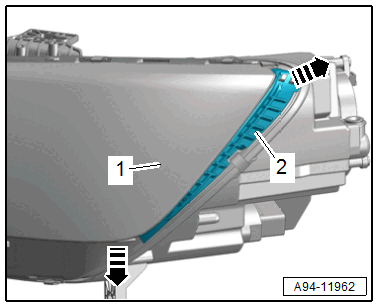

-- Detach the frame -2- from the top and bottom of the headlamp housing -1- in the direction of -arrows- and remove it.
