LEFT/RIGHT LIGHT CONTROL Module -J1018- / -J1023-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Vehicles with parking heater on right side of the vehicle: Remove the front bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING .
-- Remove the front wheel spoiler. Refer to FRONT WHEEL SPOILER, REMOVING AND INSTALLING .

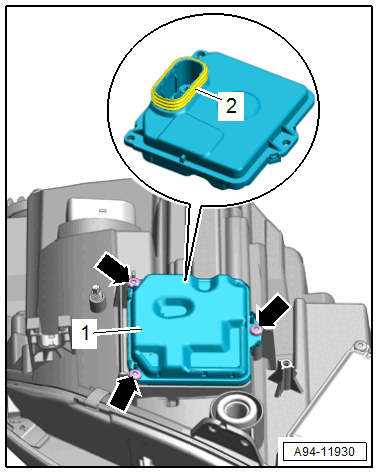

-- Remove the bolts -arrows-.
-- Remove the power output Module -1-.
