PROTECTIVE HOUSING FOR Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2: Removing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Battery, 48 V -A6-. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2 .

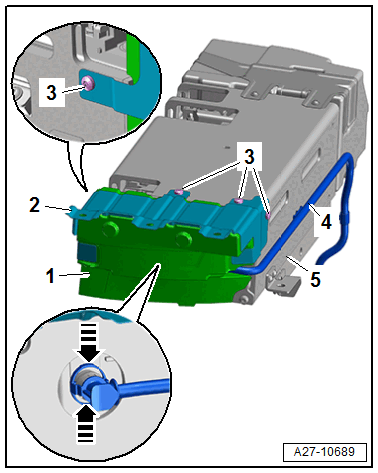

-- Remove the bolts -3-.
-- Remove the front crashpad -1- with retaining bracket -2-.
-- Remove the pressure vent tube -4- by pressing the catches on both sides together -arrows- and free up at the protective housing -5-.

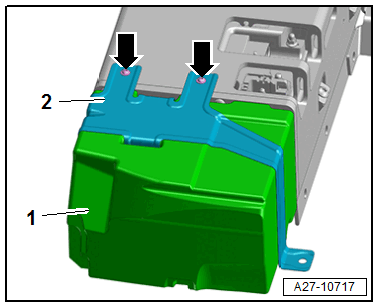

-- Remove the screws -arrows-.
-- Remove the rear crashpad -1- with retaining bracket -2-.

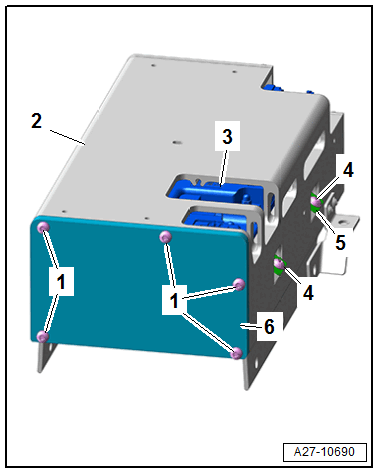

-- Remove the bolts -1-.
-- Remove the cover plate -6-.
-- Loosen the bolts -4- for the retaining bracket -5- four turns.
-- Remove the Battery, 48 V -A6- -3- from the protective housing -2-.
- Follow the disposal regulations for batteries when disposing of them. Refer to BATTERY .
