PROTECTIVE HOUSING FOR Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2: Installing
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

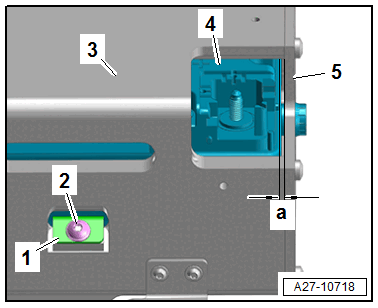

-- Insert the Battery, 48 V -A6- -4- into the protective housing -3-. Pay attention to the dimension -a- to the housing edge -5-.
- Dimension -a- = 2 mm.
-- Tighten the bolts -2- for the retaining bracket -1-.
-- Install the housing cover.
-- Push on the pressure vent tube until it audibly locks. Check the pressure vent tube for secure fit by pulling on it.
Further installation is performed in reverse order of removal, while noting the following:
-- If necessary, adapt the new Battery, 48 V -A6-. Refer to Battery, 48 V -A6-, REMOVING AND INSTALLING, 0K4 AND VH2 .
